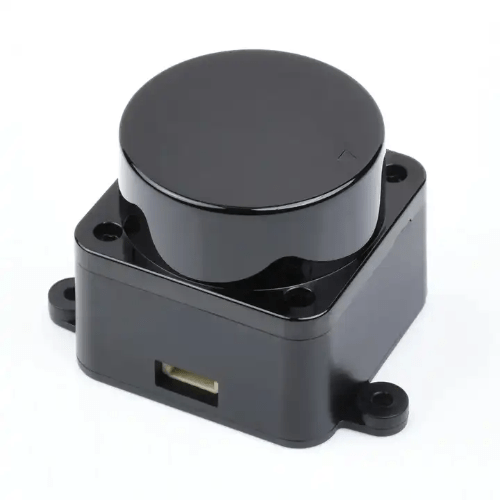

360° 5V Laser Range Sensor, 0.02m-12m, UART 230400, ±45mm Accuracy – Amuse Tech Solutions
This 360° laser range sensor measures from 0.02m to 12m, resists ambient light up to 30K Lux, communicates via UART at 230400 bps, with a current of 180mA.
Description
Features
- Ranging Distance 0.07 ft to 39.37 ft
- Ranging Frequency 4500 Hz
- Scanning Frequency 5 Hz to 13 Hz
- Ranging Average Accuracy ±1.77 in
- Scanning Angle 360°
- Lifetime 10000+ hours
Technical Specifications
| Ranging distance | 0.07 ft to 39.37 ft (0.02 m to 12.00 m) |
| Ranging average accuracy | ±1.77 in (45 mm) (within 0.07 ft to 39.37 ft(0.02 m to 12.00 m)) |
| Scanning frequency | 5 Hz to 13 Hz (Typ. 10 Hz) |
| Scanning angle | 360° |
| Ranging frequency | 4500 Hz |
| Resolution | 0.59 in (15 mm) |
| Wavelength | 895 nm to 915 nm (Typ. 905 nm) |
| Communication interface | UART 230400 |
| Ambient light resistance | 30 K Lux |
| Power supply | 5 V |
| Power consumption | ≈0.9 W |
| Operating current | 180 mA |
| Lifetime | 10000+ hours |
| Operating temperature | 14 ℉ to 204 ℉ (-10 °C to 40 °C) |
| Dimensions | 2.13 in x 1.82 in x 1.37 in (54.00 mm × 46.29 mm × 34.80 mm) |
| Weight | 0.10 lb (47 g) |
