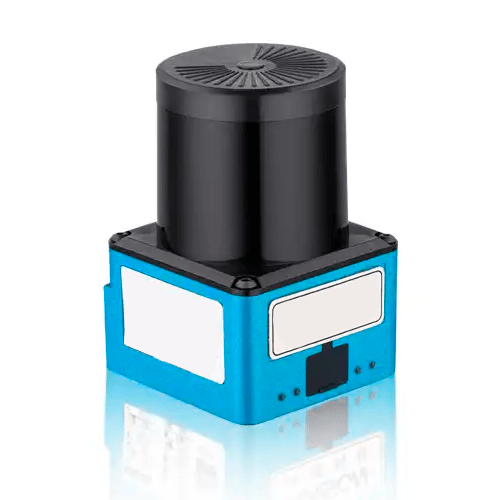

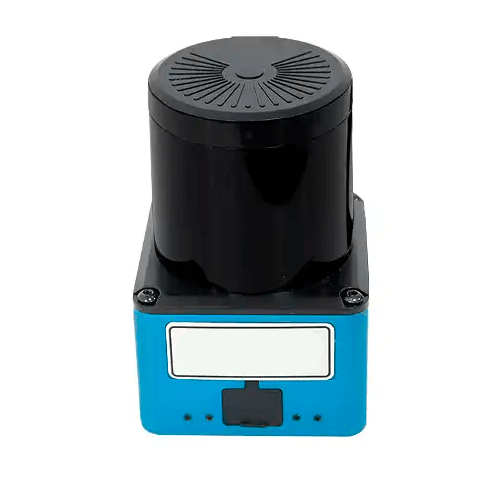

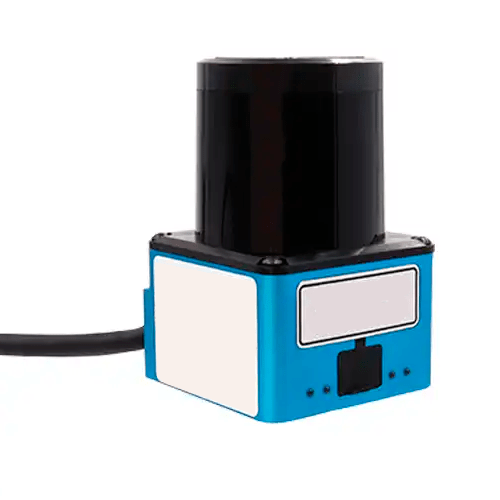

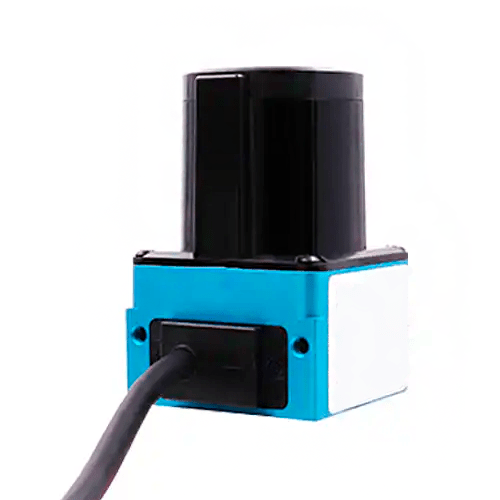

270° Laser Sensor with Adjustable Detection and CAN BUS – Amuse Tech Solutions
270° laser sensor with 905 nm wavelength, 16.4 ft max detection, adjustable angular resolution, and CAN BUS support. Ideal for obstacle detection
Description
Overview
Amuse Tech Solutions LiDAR obstacle detectors scanning sensor operates according to the time-of-flight operation. Products are widely used in AGV vehicle navigation, obstacle avoidance, safe area protection, contour profile environment identify, over limitation, overflow control and counting.
Features
- Ranging method based on TOF
- 270° detection for object distance and angle
- Detection ranges up to 32.8 ft (10 m)
- Small size
- AGV route planning
- Support for multiple communication methods
- Obstacle-avoidance channels 64
- Customizable data format
- SLAM mapping
Technical Specifications
| Product type | 270° laser sensor |
| Operating voltage | DC 18 V to 32 V |
| Rated power | <2 w |
| Light source | Laser wavelength 905 nm |
| Laser class | 1(IEC 60825 to 1 2014, EN 60825 to 1 2014) |
| Detection distance | 0.16 ft to 16.4 ft (0.05 m to 5 m) (Reflectivity 90%） 0.08 ft to 6.6 ft (0.025 m to 2 m) (Reflectivity 10%） |
| Detection range | 270° |
| Identify object shape | Any shape, reflectivity calculated by detection distance |
| Angular resolution | 0.1°, 0.2° settings |
| Protecting areas | 3 (Warning zone 1, warning zone 2, protecting zone) |
| Obstacle-avoidance channels | 64 |
| Switch output | 4 NPN |
| Micro-USB configuration port | Do not support |
| Rs232 port | Do not support |
| Rs485 port | Do not support |
| CAN BUS port | Support |
| Ethernet port | Support |
| Laser scanning frequency | 20 Hz |
| Response time | Typical value 50 ms |
| Systematic error | <1.6 in (<40 mm) |
| Statistical error | <1.2 in (<30 mm) |
| Detection output time delay | 0 ms to 500 ms can configure within range |
| Detection hold time-delay | 0 ms to 500 ms can configure within range |
| Object reflectivity | 40% to 1000% |
| Ambient light strength | < 80000 lx |
| Operating environment | 50 °F to 122 °F (10 ℃ to 50 ℃) <85% RH non-condensation, no dew |
