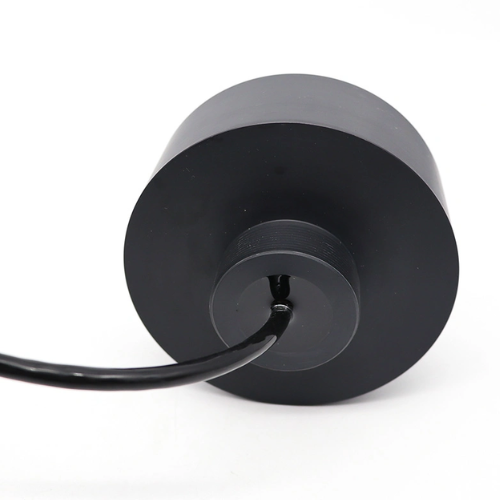

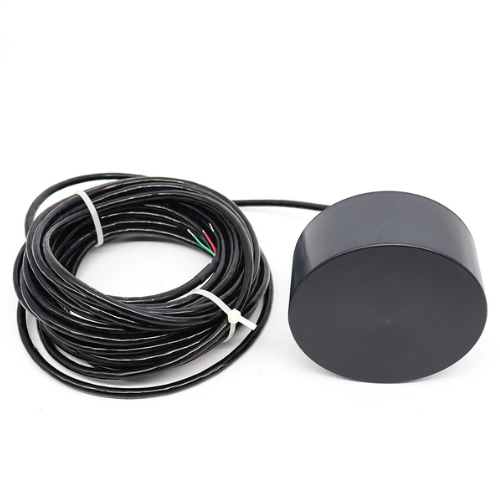

100 kHz Ultrasonic Underwater Ranging Acoustic Transducer for Underwater Depth Sensor Water Transducer – Amuse Tech Solutions
Ultrasonic Underwater Ranging Acoustic Transducer. Ideal for underwater depth sensors, this transducer ensures accurate depth measurement in marine environments.
Description
Technical Specifications
| Center Frequency | 100 kHz, ± 5 % |
| Minimum Parallel Resistance | 35 Ω, ± 20 % |
| Capacitance | 11000 pF, ± 20 % pF at 1 kHz |
| Echo Sensitivity (FOM) | At Driving Voltage 300 Vpp, Distance: 0.7 m, Echo Amplitude 5 V |
| Maximum Driving Voltage (2% Duty Cycle Tone Burst) | 1500 Vpp |
| Beamwidth (at -3 dB Half-Power Angle) | 7.6 °± 10 %, (at -20 dB Acute Angle): 18°±10 % |
| Housing Material | ABS |
| Protection Level | IP68 |
| Wiring Instruction: Integrated Type Connector: As Follows: | (3 PIN, Terminal Red + Black Common terminal, Green MF58 Temperature Sensing -) |
| Minimum and Maximum Sensing Range | 3.94 ft to 984.25 ft (1.2 m to 300 m) |
| Pressure | 352.74 oz (≤ 10 kg) or 1 MPa |
| Operating Temperature | -40 °F to 176 °F (-40 °C to 80 °C) |
| Weight | 61.09 oz (1.73 kg) ± 5 % |
