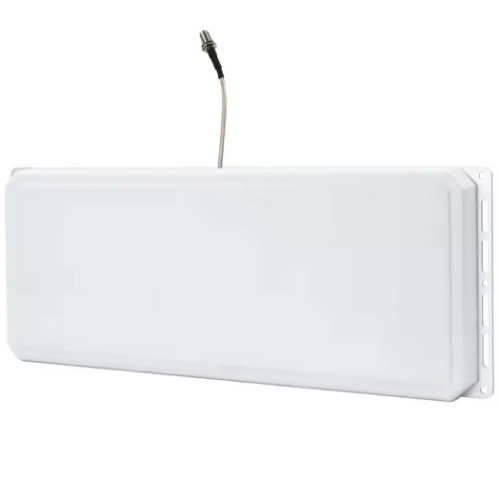

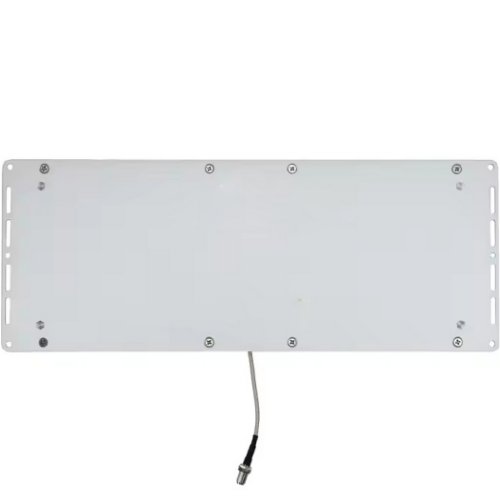

Anti Collision RFID Antenna for Multiple Tags – Amuse Tech Solutions
RFID antenna designed for running race timing systems, optimized for multiple tag reading with anti-collision features. Ideal for race management.
Description
Overview
Amuse Tech Solutions’s Anti-collision RFID Antenna for Multiple Tags 902 MHz to 928 MHz RFID system is designed for various applications such as intelligent shelves, cabinets, logistics, and access control. The antenna is large in size, features a back cover, and can be integrated into all-in-one machines with built-in modules. It offers long reading and writing distances, ensuring high stability and reliable performance in diverse environments. This system is ideal for efficient inventory management and secure access control applications.
Technical Specifications
| Frequency Range | 902 MHz to 928 MHz (Can be customized) |
| Protocol | ISO or IEC 18000-6B 6C or EPC C1 Gen2 |
| Beam Width (°) | Horizontal: 45° ± 1°, Vertical: 75° ± 1° |
| Reflector Material | FR4 Copper Clad Laminate |
| VSWR | ≤1.5 |
| Impedance | 50 ohms |
| Polarization | Circular Polarization |
| Max Power | 50 W |
| Connector | Internal Lead RG316 or 10 cm or Connector or Customized |
| Dimensions (mm) | 13.23 in × 5.12 in × 0.79 in (336 mm × 130 mm × 20 mm) |
| Application | Intelligent Shelves |
| Gain | 8 dBi |
| Radome Material | ABS |
| Radome Color | White |
| Operating Temperature | -40 °F to +131 °F (-40 °C to +55 °C) |
| Antenna Weight (kg) | 1.30 lb (0.59 kg) |
